Features
This Addon have two Main Panels, The Action Commander Panel and Action bin Panel.
Action Commander Panel
The Action Commander shows the Actions that are associate or stored in a Object. With this Panel, you can Switch Actions with Ease
Animation Switching
The Core Idea of the Addon is Animation Switching with Frame Range Adjusted when you switch the action
This is Useful when you are working on multiple action sets, such as creating a animation set for your game character model
The Action is stored on the Object itself, so it will hide the other unrelated actions
Load Action
Sometimes you have action that are already animated, or is used by other objects, but it is not added into the list, You can Load an existing action in your blender file for your object to use
This is useful when you append action from Another Blend file to use on the current object
New Action
Create a New Empty Action for your object for you to start animating
This is useful when you want to create an animation set
Load Duplicate
Very Often, you want to create an animation using another animation as base. This is where load duplicate shines, you can make a duplicate of your animation as a base, or making the variation of the animation.
This is Useful when you want to make variation of an Animation
Tag System
You can Add Tags to the Action, separated by comma.
You can Use Filter with Tags in the List
Available Tags List - If this object have any action uses tags, it will be listed in the Available Tags Subpanel. This Subpanel will be hidden if no action uses tags in this object
Action Details
The Details of the Actions is display in the Collapsable Subpanel below the Action List
Frame Range - Frame Range of the Action, Greyed Out if Manual Frame Range is Off
Manual Frame Range - Enable manually setting the frame range
Use Cyclic - Use Cyclic option in Action
Tags - This Action’s Tags
Pose Markers - Pose Marker Manager
Pose Marker Manager
While it is a very hidden feature, action actually stores Pose Marker in them.
This feature will list Pose Markers in a List
The List will have Action Button that you can enable / Disable
Pose Marker Action Button
Jump to Marker - This will jump the current frame to this marker’s frame
Select - Select Status of this Pose Marker
Frame - The Frame of this Pose Marker
Remove - Remove This Pose Marker
Use Pose Marker As Range
Enabling this will make the Action Commander to use the Pose Marker A and Pose Marker B as Frame Range, if available
Find Range Markers - This is the same as Find All Actions Range Markers, but only within in this Action
Pose Marker A - First Pose Marker, usually use for Start of Frame Range
Pose Marker B - Second Pose Marker, usually use for End of Frame Range
Note - Pose Marker A and Pose Marker B can be flipped, the addon will automatically take the lower frame as start and higher frame as end
Add Pose Marker As Range (A / B) - Utility Function to Help create a Pose Marker and Assign as Marker A or Marker B
Name - Name for the New Pose Marker
Sync Frame - Enable to Also set the current frame to Preview the frame to be added
Current Frame - Frame of the New Pose Marker
Pose Marker Manager Extra Menu
Extra Utility Function for Pose Marker Manager
Clear Pose Markers - Remove All Pose Marker From this Action
Remove Pose Marker By Name
Mode
Include - Remove the marker if the marker name include the specified string
Exclude - Remove the marker if the marker name exclude the specified string
Exact - Remove the marker if the marker name is exactly the specified string
Name - Name to match the pose marker name to be removed, either include, exclude or exact
Selected Marker Only - Limit to remove only within selected marker only
Remove Overlap Marker - Remove any Duplicate Marker with same frame and name
Import Pose Markers - Import Pose Marker from External File exported by Action Commander
Find and Bind Camera - Attempt to Find and Bind Relevant Camera
Export Pose Markers - Export Pose Marker to External File
Batch Rename Pose Markers
Mode
Prefix - Add A Prefix to the in front of Pose Marker Name
Suffix - Add A Suffix to the end of the Pose Marker
Replace - Find and Replace the String in the Pose Marker Name
Remove - Remove the String from the Pose Marker Name
Prefix / Suffix / Find - Prefix / Suffix / Find / Remove String
Replace - String to replace to in Replace Mode
Name - Name to match the pose marker name to be removed, either include, exclude or exact
Note
Technical Details for External Marker File
Marker files is just simple JSON file with the marker info in it
Action Box
Some Action from the Action List, This is the same operator with the Action List
Play
Bake This Action
Push To NLA
Duplicate
Multi Object Support
While it is not the most useful feature, it is possible to display multiple object’s action list
Because the uses of this feature is niche and it clutters the UI, this is disabled by default as most people don’t need it, but you can enable it in the preferences.
Multi Object Filtering
After Enabled this Feature, You can choose between Active, Selected or All Mode
Modes
Active Mode (Default) - This is the Default Behavior, and is the same with Multi Object Support disabled. In This Mode, It will only show the Action List for the Active Object
Selected Mode - In This Mode, Action Commander will display Action List for Selected Objects
All Mode - Action Commander will display Action List for all object in the current scene.
Filters
You can filter what type of object you want to display,
In Selected and All mode, you also have a option to filter which object’s action list to display by name
Target Armature Options will let the addon display a Mesh Object’s Armature instead of Mesh Object’s Armature if they one
Split Panel
Split Panel Allow you to have two List Side by side
You can use the Blender default List Filter to filter them,
Could be useful if you want to quickly switch between two action when you have alot of actions.
Duplicate All
Duplicate All will Make a Copy of All the Action in the object’s Action List,
Replace Slot
True: Clear the existing actions and replace it with the duplicated ones
False: Add the duplicated Actions into the list instead of replacing them
Import FBX Actions
Note
You Have the Option to use Better FBX if you have Better FBX installed.
Import And Load FBX Actions
This Operator will Import FBX actions without mesh / armature (It works by removing the unnecessary data after import)
This operator will also Load the Action to the relevant object.
Action Commander
Load To Object - Load the Action to the Object
Purge Orphan Data - Purge Orphan Data after Importing
Action Rename
Use File Name As Action Name - Imported Action will be renamed to it’s file name
FBX Importer
Built-In - Use and Forward the Import Settings in the Default Blender FBX Importer
Better FBX - Use and Forward the Import Settings using the Better FBX Addon
(Only Usable if you Have Better FBX)
Import Settings - All The Settings that is forwarded to the operator
Recursive Import And Load FBX Actions
Similar to Import and Load FBX Action, but import recursively in a Folder
Action Commander
Load To Object - Load the Action to the Object
Purge Orphan Data - Purge Orphan Data after Importing
Action Rename
Use File Name As Action Name - Imported Action will be renamed to it’s file name
FBX Importer
Built-In - Use and Forward the Import Settings in the Default Blender FBX Importer
Better FBX - Use and Forward the Import Settings using the Better FBX Addon
(Only Usable if you Have Better FBX)
Import Settings - All The Settings that is forwarded to the operator
Append Actions From Blend File
Choose and Append / Link Blend File Action
This Operator Allow you to Choose and Append / Link multiple Action in a Blend File and Add to the List
This Option will appear and You can choose the action you want to append / link
You can Filter by Name, either Include or Exclude when Filtering
By Pressing the Append Button, you can append the action from the blend file, alternately, you can also append all the actions in the blend file
Append All Actions from Multiple Blend File
This Operator Allow you to append all actions from Multiple Blend file, you cannot choose which action to import however
Link All Actions from Multiple Blend File
This Operator Allow you to link all actions from Multiple Blend file, you cannot choose which action to import however
Utility Operator
Push All To NLA
This will Push all the Actions in the object ot NLA
Preclear NLA - Clear All the NLA Strips before pushing the action into NLA
Clear Empty NLA Tracks - Clear all empty NLA Tracks
Fake User On / Off
Fake User On - This will Turn all the Actions Fake User in an Object On
Fake User Off - This will Turn all the Actions Fake User in an Object Off
Clear Actions
This will Clear or Remove all actions from the object’s Action List (Note that the Action will still be in the blend file)
Batch Rename Action
This will Allow you to Batch Rename all the Actions in the object by adding Prefix, Suffix, Remove or Find and Replace a Substring
Mode
Prefix - Add A Prefix to the in front of action name
Suffix - Add A Suffix to the end of the action name
Replace - Find and Replace the String in the action name
Remove - Remove the String from the action name
Prefix / Suffix / Find - Prefix / Suffix / Find / Remove String
Replace - String to replace to in Replace Mode
Sort Action
This will let you to sort your actions order in the list by name or by the frame range size, you can also sort it in reverse with the reverse checkbox on
Sort By
Name - Sort By Name
Range Size - Sort By Frame Range Size
Reverse - Reverse the Sort
Remove Actions By Condition
You Can Remove Action by Condition when dealing with a large animation set. The condition supported are by Name (include or exclude) and Frame Range Size (==, >=, <=)
The Box Below will preview the action that match the condition, and to be deleted when confirm.
Condition - Name
Name - Remove By Name
Include / Exclude - Condition if name include / exclude
Condition - Range Size
Operator for Comparing the Frame Range Size- Greater or Equal / Lesser or Equal / Equal
Frame Range Size- Size of the Frame Range to Compare
Show Detected - List Matching Action that will be removed
Find All Actions Range Markers
Going through the Actions in the object and find and set marker as action’s frame range by name
Find
Suffix - Condition Find marker name with suffix
Prefix - Condition Find marker name with prefix
Include - Condition Find if marker name include string
Find Marker A - Find the First Marker
Marker A - String used to find the marker A
Find Marker B - Find the Second Marker
Marker B - String used to find the marker B

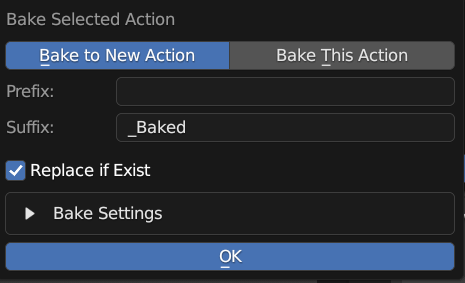

Bake Selected Actions
Bake To New Action - Bake and Rename into a New Action
Prefix - Prefix Added to the Baked Action Name
Suffix - Suffix Added to the Baked Action Name
Replace if Exist - Overwrite the Action if the Action Name Already Exist
Bake This Action- Bake and Overwrite the Current Action
Select / Deselect all action
Select all action- select all the action in the object’s action list
Deselect all action- deselect all the action in object’s action list
Batch Tag Action By Name
Tag Action in an Object By Name
Include- Tag the Action if the Action name Include this String
Tag- The String used as Tag
Add / Replace
Add - Add the Tag to the matching Action
Replacce - Replace the Tag to the matching Action
Refresh Frame Range
There is a shortcut key to Refresh your frame range to match your action
The Default keymap is Shift F, but you are free to rebind it to other key
Action Bin Panel
The Action Bin shows all the Actions in your Blend File. You can think of this as a Global Action Bin, where all the Action created / imported are available in your Blender File is listed.
With this, you can find out the “Orphan Action” which are actions that are not assigned to any objects, or to inspect the actions that are not currently in use, but want to keep in the blend file for later.

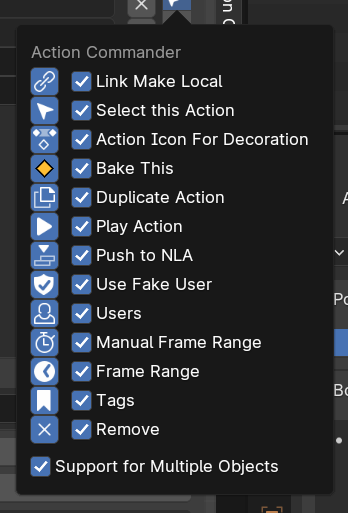

Action Button
Action Button are Buttons you can enable and disable in the list
Select Object - Select Object that are using this action
Load Action - Load This Action into the Active Object
Fake User- Fake User State of this Action
Duplicate - Duplicate this action in this blend file
Name - Name of the Duplicated Action
Users - The User count of this action
Name - Name of the action
Tags - Tags of this action
Remove - Remove this action from this Blend File
Button toggle
You an toggle the buttons on the side of the list

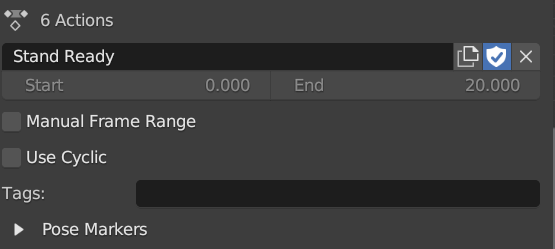

Action Details
Details of the Action same as the Object Action Detail
Name - Action Name
Duplicate - Duplicate This Action
Fake User - Fake User State of this Action
Remove - Remove This Action from this Blend File
Frame Range - Frame Range of the Action
Manual Frame Range - Use Frame Range for Action
Use Cyclic- Use Cyclic Option in Action
Tags - Tags of this Action
Pose Marker Manager - Pose Marker Manager Same as the Object’s Action List
Import FBX Actions
Note
You Have the Option to use Better FBX if you have Better FBX installed.
Import And Load FBX Actions
This Operator will Import FBX actions without mesh / armature (It works by removing the unnecessary data after import)
This operator will also Load the Action to the relevant object.
Action Commander
Load To Object - Load the Action to the Object
Purge Orphan Data - Purge Orphan Data after Importing
Action Rename
Use File Name As Action Name - Imported Action will be renamed to it’s file name
FBX Importer
Built-In - Use and Forward the Import Settings in the Default Blender FBX Importer
Better FBX - Use and Forward the Import Settings using the Better FBX Addon
(Only Usable if you Have Better FBX)
Import Settings - All The Settings that is forwarded to the operator
Recursive Import And Load FBX Actions
Similar to Import and Load FBX Action, but import recursively in a Folder
Action Commander
Load To Object - Load the Action to the Object
Purge Orphan Data - Purge Orphan Data after Importing
Action Rename
Use File Name As Action Name - Imported Action will be renamed to it’s file name
FBX Importer
Built-In - Use and Forward the Import Settings in the Default Blender FBX Importer
Better FBX - Use and Forward the Import Settings using the Better FBX Addon
(Only Usable if you Have Better FBX)
Import Settings - All The Settings that is forwarded to the operator
Append Actions From Blend File
Choose and Append Blend File Action
This Operator Allow you to Append and Choose Action in a Blend File and Add to the List
This Option will appear and You can choose the action you want to append
You can Filter by Name, either Include or Exclude when Filtering
By Pressing the Append Button, you can append the action from the blend file, alternately, you can also append all the actions in the blend file
Append All Actions from Multiple Blend File
This Operator Allow you to append all actions from Multiple Blend file, you cannot choose which action to import however
Utility Operator
Fake User On / Off
Fake User On - This will Turn all the Actions Fake User in an Object On
Fake User Off - This will Turn all the Actions Fake User in an Object Off
Clear Actions
This will Clear or Remove all actions from the object’s Action List (Note that the Action will still be in the blend file)
Remove Zero Users
Remove Action with no Users
Batch Rename Actions
This will Allow you to Batch Rename all the Actions in the object by adding Prefix, Suffix, Remove or Find and Replace a Substring
Mode
Prefix - Add A Prefix to the in front of action name
Suffix - Add A Suffix to the end of the action name
Replace - Find and Replace the String in the action name
Remove - Remove the String from the action name
Prefix / Suffix / Find - Prefix / Suffix / Find / Remove String
Replace - String to replace to in Replace Mode
Batch Tag Action By Name
Tag Action in an Object By Name
Include- Tag the Action if the Action name Include this String
Tag- The String used as Tag
Add / Replace
Add - Add the Tag to the matching Action
Replacce - Replace the Tag to the matching Action
Preferences
General Tab
Support for Multiple Objects - Enable Multiple Objects Support
Action Commander Panel - Enable Action Commander Panel
Category - Catagory Name in the N Panel
Label - Label Name in the N Panel
Action Bin Panel - Enable Action Bin Panel
Category - Catagory Name in the N Panel
Label - Label Name in the N Panel
Icons Tab
Icon Action Button Toggle in the Action Commander List and Action bin
This is the Same Options next to the List
Keymap Tab
The Addon have some options that you can adjust.
The General Tab allows you to Enable or Disable Specific Panel, and the Category (Tab in Side Panel) name or Label of the Panel
You also have the options to Enable Multi Object Support for the Action Commander to Display Multiple Object’s Action List
The Icon Tab allows you to toggle to show which buttons to appear on the List Item in the Action Commander. You can also toggle the icon from next to the list in a Drop Down Menu
The Keymap Tab let you modify the Keymap for the Refresh Frame Range Keymap
Action Tags / Action Sets
